Laboratory Evaluation of Methylene Blue Degradation by Electro-Oxidation Using the YASA ET EO Test Kit
- 24 hours ago
- 8 min read
Mechanisms, Operating Parameters, and a Laboratory Demonstration Using Methylene Blue, Sodium Sulfate, and anhydrous
YASA Environmental Technology Co., Ltd., No. 588 Xinjinqiao Road, Pudong, Shanghai, China. Corresponding author: info@yasa.ltd | www.yasa.ltd
Abstract
Electro-oxidation is an advanced electrochemical treatment process used to transform coloured and refractory organic pollutants through direct anodic electron transfer and oxidation by electrochemically generated species. This article reviews the principal reaction pathways, the function of dimensionally stable anodes, the role of supporting electrolytes, and the operating variables that govern process performance. These concepts are illustrated through a laboratory demonstration using the YASA electro-oxidation test system. A 2 L synthetic wastewater sample prepared from tap water, methylene blue, and anhydrous sodium sulfate was circulated through a reactor equipped with an iridium-based oxide-coated titanium anode and a titanium cathode. After 30 min of direct-current treatment, the blue colour was substantially reduced, and the solution appeared markedly clearer. The observation supports disruption of the methylene-blue chromophore, but visual decolourisation alone does not establish pollutant removal efficiency, complete degradation, or mineralisation. Quantitative evaluation should therefore include UV–visible absorbance, chemical oxygen demand, total organic carbon, pH, conductivity, applied charge, current efficiency, and specific energy consumption. The case study demonstrates the value of laboratory screening while also showing why electro-oxidation systems cannot be selected solely from wastewater flow rate or visual colour removal.
Keywords: electro-oxidation; anodic oxidation; methylene blue; dimensionally stable anode; iridium-coated titanium; decolourisation; supporting electrolyte; wastewater treatment
Highlights
• Distinguishes direct anodic oxidation from mediated oxidation in the bulk liquid.
• Explains how electrode material, current density, conductivity, pH, temperature, and hydraulics affect
treatment.
• Presents a methylene-blue and sodium sulfate solution for demonstration using an iridium-based oxide-
coated titanium anode.
• Separates visible decolourisation from verified organic removal and mineralisation.
• Defines the minimum analytical data required for pilot and industrial scale-up.
1. Introduction
Industrial effluents from textile dyeing, printing, chemical manufacture, pharmaceuticals,
petrochemicals, landfill leachate management, and other sectors may contain coloured and poorly biodegradable organic compounds. Conventional biological treatment can be ineffective when pollutants are toxic, structurally stable, present at variable loading, or resistant to microbial conversion.
Electrochemical treatment offers an alternative in which oxidation and reduction reactions are driven by electrical current rather than by the continuous bulk addition of oxidising chemicals.
Electro-oxidation is not a single reaction but a family of anodic processes. Pollutants may transfer electrons directly at the anode surface, react with short-lived oxidants generated at or near the anode, or be transformed by longer-lived mediators formed from species already present in the wastewater. The dominant pathway depends on the electrode material and on the composition of the water matrix, particularly chloride concentration, conductivity, pH, alkalinity, and organic loading.
This article is structured as a narrative technical review combined with a laboratory case study. It first summarises the electrochemical mechanisms and operating parameters that control treatment, then interprets a methylene-blue and sodium sulfate solution decolourisation test performed with the YASA laboratory electro-oxidation system. The case study is intentionally treated as a screening demonstration rather than as proof of complete pollutant mineralisation.
2. Scope and Review Framework
The review focuses on anodic electro-oxidation for organic-pollutant control, with emphasis on dye-containing wastewater, mixed-metal-oxide or iridium-based titanium anodes, conductivity adjustment, and reactor operating variables. Broader electrochemical technologies, such as electrocoagulation and electrodialysis.
Its purpose is to place the laboratory observation within an accepted electrochemical framework and to identify the data required before engineering design decisions can be made.
3. Fundamentals of Electro-Oxidation

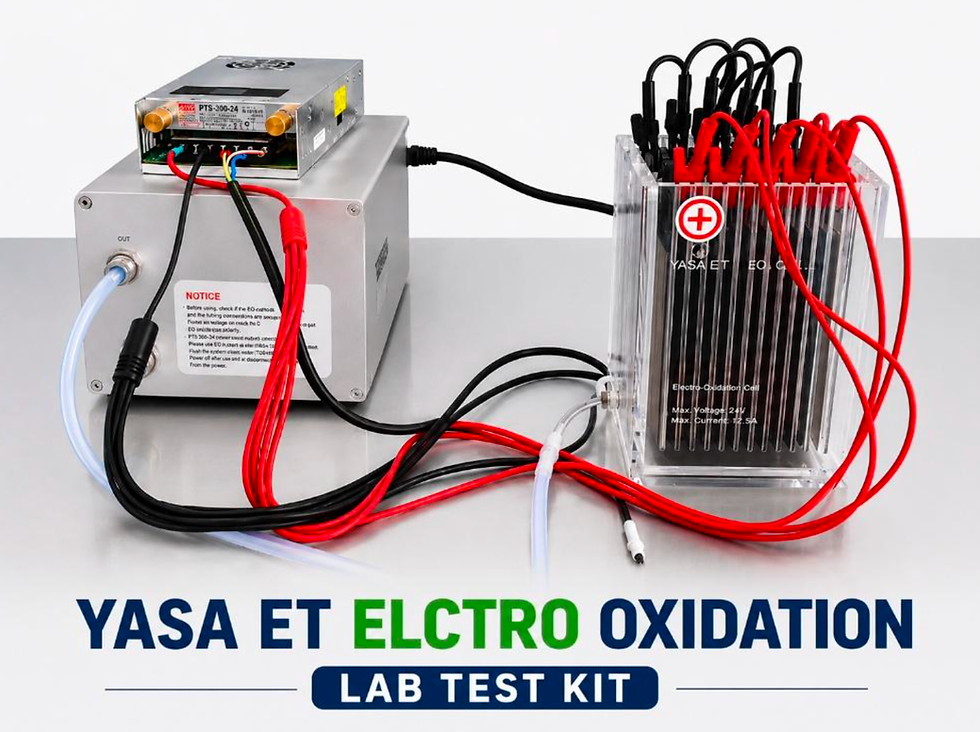

3.1 Electrochemical reactor configuration
A basic electro-oxidation reactor contains an anode, a cathode, an electrolyte solution, a direct-current power supply, and a hydraulic arrangement that brings contaminants into contact with the electroactive region. Oxidation occurs at the anode, while reduction reactions occur at the cathode. In flow-through or recirculating systems, pumping and mixing are used to limit concentration gradients and improve the transport of pollutants and ions to the electrode surfaces.
3.2 Direct anodic oxidation
In direct anodic oxidation, a pollutant reaches the anode surface and undergoes electron transfer. The initial transformation may break a chromophore, alter functional groups, or produce smaller intermediates. Direct oxidation can be kinetically limited because only molecules transported to the electrode surface can react. Electrode fouling, competing oxygen evolution, and mass transfer limitations may further reduce the fraction of electrical charge used for pollutant conversion.
3.3 Indirect or mediated oxidation
In indirect oxidation, the applied current generates reactive species that subsequently attack pollutants in the liquid phase. Depending on the anode and water chemistry, these may include surface-bound hydroxyl species, active chlorine species, ozone, persulfate-related oxidants, or other mediators. Where chloride is present, anodic chlorine formation followed by hydrolysis can produce hypochlorous acid and hypochlorite. These species can accelerate colour removal, but they also create a requirement to evaluate chlorinated intermediates, chlorate, perchlorate, and residual oxidant.
Representative anodic pathways
Water activation at the anode: M + H₂O → M(•OH) + H⁺ + e⁻
Chloride oxidation: 2Cl⁻ → Cl₂ + 2e⁻
Chlorine hydrolysis: Cl₂ + H₂O ⇌ HOCl + H⁺ + Cl⁻
These equations are schematic. Actual pathways depend on anode composition, potential, pH, and
wastewater chemistry.
3.4 Cathodic reactions and process consequences
Although pollutant destruction is normally associated with the anode, cathodic reactions affect overall operation. Hydrogen evolution can generate bubbles, locally increase pH, and alter mixing. Metal ions may precipitate near the cathode, while scaling can increase electrical resistance and block hydraulic passages. Reactor design must therefore consider both electrodes, not only the anode catalyst.
4. Electrode Materials and the Role of Iridium-Based Titanium Anodes
The anode largely determines oxygen-evolution behaviour, oxidant generation, service life, fouling resistance, and energy demand. Titanium substrates coated with catalytic metal oxides are commonly described as dimensionally stable anodes. The titanium provides mechanical strength and corrosion resistance, while the catalytic coating provides an electrochemically active surface.
Iridium-based oxide coatings are frequently selected where robust oxygen evolution, electrical conductivity, and long-term stability are required. In chloride-containing water, they can also support the formation of active chlorine. This can be advantageous for rapid decolourisation and disinfection, but it changes the treatment mechanism and may increase by-product risk. Consequently, an anode should not be described as universally suitable without considering the wastewater matrix and the
target contaminants.
Electrode selection should be based on treatment objective, expected oxidant pathway, chloride concentration, organic loading, allowable by-products, temperature, current density, and cleaning strategy. Boron-doped diamond, lead dioxide, tin oxide, platinum-group-metal oxides, and mixed-metal-oxide coatings exhibit different oxidation power, oxygen-evolution overpotential, cost, and durability. A low electrode purchase price can be misleading if it produces poor current efficiency or short coating life.
5. Operating Parameters Governing Performance
Table 1. Principal operating parameters and their engineering significance.
6. Role of the Supporting Electrolyte
Electrical current passes through water by ionic movement. When the ionic strength is low, the solution resistance increases, and the power supply must operate at a higher voltage to maintain the selected current. A supporting electrolyte can reduce ohmic losses and stabilise current delivery. Sodium sulfate is often used in laboratory studies because it increases conductivity without deliberately introducing chloride as the dominant mediator.
In the present demonstration, anhydrous sodium sulfate served principally as a conductivity-supporting salt rather than as the primary oxidising chemical. That distinction is important. The addition of sodium sulfate does not by itself prove sulfate-radical generation under the stated conditions. Claims of persulfate or sulfate-radical chemistry would require suitable electrode conditions and direct or indirect evidence of those species.
In industrial wastewater, the need for added electrolyte should be determined from measured conductivity and the resulting cell voltage. Wastewater already containing dissolved salts may not require supplementation. Adding electrolytes without an energy balance may improve electrical operation while worsening total dissolved solids, corrosion, or reuse limitations.
7. Laboratory Demonstration with Methylene Blue and Sodium Sulfate Anhydrous Solution
7.1 Test objective and materials
Methylene blue was selected as a visible model contaminant because its intense colour allows rapid qualitative observation of chromophore disruption. The test solution was prepared from tap water, methylene blue, and anhydrous sodium sulfate. The laboratory system used an iridium-based oxide-coated titanium anode and a titanium cathode, with recirculation through the electrochemical reactor.
7.2 Experimental conditions
7.3 Visual observations
At the start of treatment, the methylene-blue solution was strongly and uniformly blue. During the current application, the colour intensity progressively decreased. After the reported 30 min treatment period, the liquid appeared substantially clearer than the untreated solution. The reactor operated with visible gas evolution and recirculation, indicating active electrolysis and mass transfer within the cell.
7.4 Technical interpretation
The visible loss of blue colour is consistent with disruption of the chromophoric structure of methylene blue. The result may arise from direct anodic oxidation, mediated oxidation, or a combination of both. Because tap water can contain chloride, some contribution from active chlorine is plausible, but it was not measured and should not be asserted as the confirmed dominant mechanism.
Colourless intermediates may remain after the chromophore is destroyed. The accurate conclusion is therefore that the experiment demonstrated qualitative decolourisation and stable operation of the laboratory system under the tested conditions.
8. Minimum Analytical Framework for Future Tests
A credible electro-oxidation study must connect water-quality change to electrical dose. Visual photographs are useful for communication, but are not adequate for process design. At a minimum, future tests should record the initial and final pollutant concentration, absorbance spectrum, COD, TOC, pH, conductivity, temperature, current, voltage, electrode area, liquid volume, treatment time, and recirculation flow rate.
9. Relevance to Industrial Wastewater Treatment
Electro-oxidation can be considered for wastewaters containing dyes, refractory COD, phenolic compounds, pharmaceutical residues, odour-causing compounds, selected nitrogen species, and other difficult-to-biodegrade contaminants. It may be used as a principal oxidation stage or as polishing after biological, physical, or chemical treatment. Published experience also supports integration with filtration, adsorption, electrocoagulation, membrane processes, and other advanced oxidation
technologies.
Real industrial wastewater is substantially more complex than the synthetic methylene-blue solution. Suspended solids can block electrode gaps; oils and surfactants can foul surfaces; carbonate and hardness can cause scaling; chloride can change both performance and by-product formation; and high
COD can increase the electrical dose required. Laboratory screening with actual wastewater is therefore necessary before pilot design.
Equipment selection based only on flow rate is technically unsound. Required anode area, power-supply capacity, residence time, recirculation rate, cooling requirement, and energy consumption depend on pollutant loading and matrix chemistry.
10. Scale-Up, Safety, and Research Priorities
Scale-up should preserve relevant charge loading, current distribution, mass-transfer conditions, and electrode-area-to-volume ratio rather than merely multiplying laboratory volume. Voltage losses through larger hydraulic paths, gas disengagement, heat removal, electrical safety, electrode
replacement, and cleaning access become increasingly important at pilot and industrial scales.
The principal development priorities for the present test system are: quantitative pollutant and COD/TOC analysis; controlled comparison of current densities; measurement of voltage and energy use; tests with and without chloride; electrode-lifetime evaluation; identification transformation products; and validation using actual industrial wastewater. These steps would convert the current visual demonstration into an engineering data set suitable for process optimisation and scale-up.
11. Conclusion
The YASA electro-oxidation laboratory test achieved rapid and effective decolourisation of a 2L methylene blue solution containing sodium sulfate. Using an iridium-based mixed-metal-oxide-coated titanium anode and a titanium cathode, the visible blue colour was substantially eliminated within 30 minutes of treatment. This result demonstrates strong electrochemical oxidation activity and confirms that the YASA test system can effectively disrupt the chromophoric structure of methylene blue under the selected operating conditions.
The test, therefore, provides a successful proof of concept for the electro-oxidation process and confirms the suitability of the YASA laboratory system for wastewater-treatment screening and process optimisation.
Overall, the experiment produced a clearly positive treatment result and supports further optimisation of operating parameters, followed by pilot-scale validation using actual wastewater.
